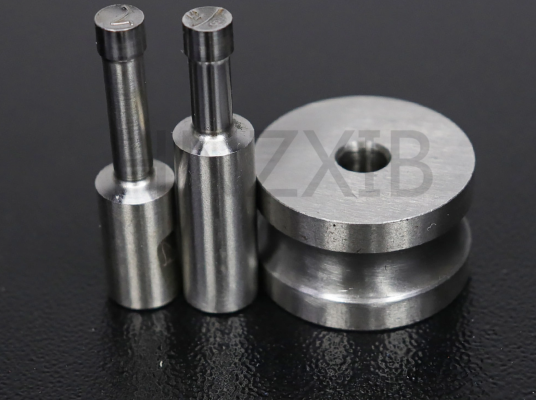

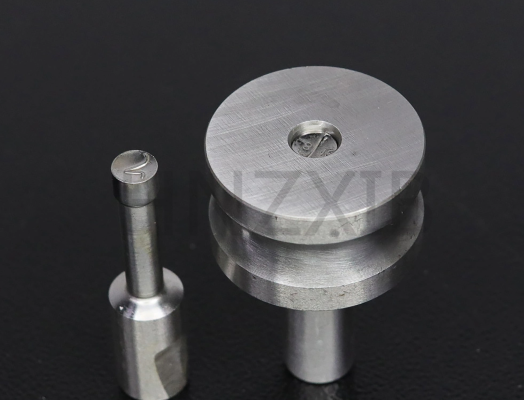

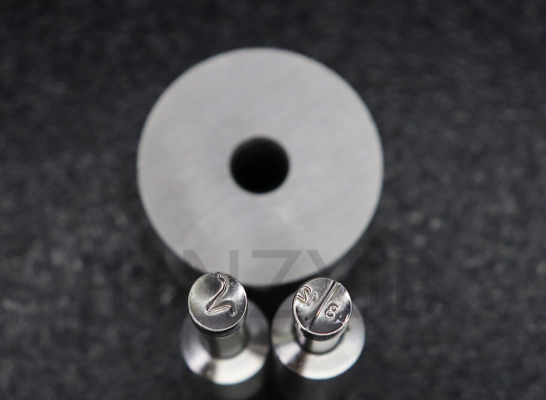

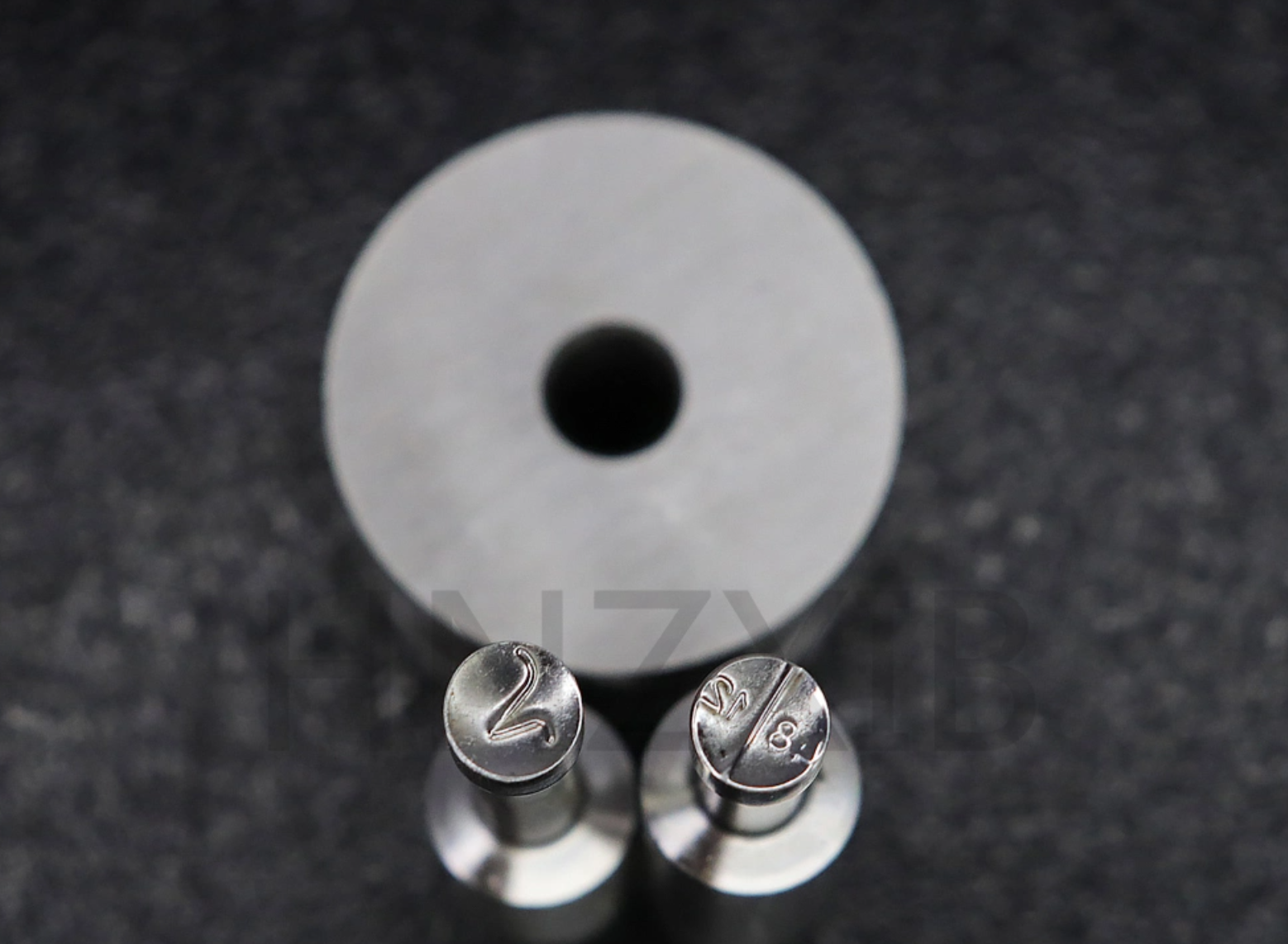

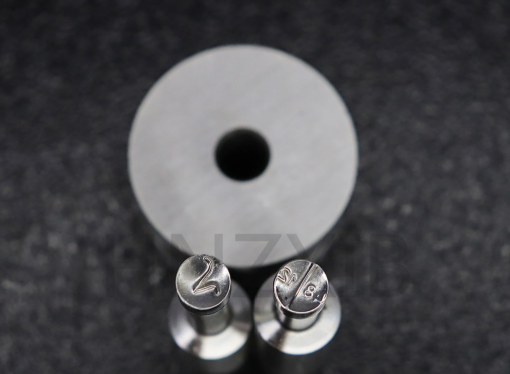

- Pill stamp dies for TDP – 0 pill making machine, handheld manual pill press, pill press machine, hand pill press, TDP-1.5 press die machine.
- Highly polished and made of toughened steel, New Dawn makes dies more durable and exquisite, each die set is capable of making perfect pills and tablets.
The special pattern and size can be customerized for you.
- Tablet press die engraving die | | can lettering punch is an important part of tablet press, in the industry, also known as tablet press die. The die of a tablet pressing machine is divided into three parts: upper punching die, middle punching die and lower punching die. We manufacture round, special type, rotary type, single type, etc., in the material, heat treatment, grinding, polishing and other processes contain many years of technical experience. Especially the selection of material, especially the selection of imported steel to improve the quality of the mold. In the technical specification, always adhere to the manufacturing standards. The mould assembly in the tablet pressing machine is suitable for pressing Chinese and Western medicine tablets, nutrient tablets, lozenges, spirulina tablets, milk tablets, vitamin C effervescent tablets, effervescent tablets, flavoring blocks, mothballs (sanitary balls), aromatic balls, disinfection tablets, fertilizer tablets, bath salt balls, button batteries, electronic components, metallurgical powder ceramic granules.
Tablet press die engraving die | | can lettering punch features:
Made of carbon steel, bearing steel, chromium 12 material
Digital machining center finishing manufacturing, in line with IPT standards
Corrosion resistance, impact resistance, wear resistance, high temperature resistance, long life
100% interchangeability (no matter round or special mold)
Accuracy: Up to level 2
The surface roughness of the die surface is up to Ra 0.1, and the remaining mating surface is up to Ra 0.4
Hardness: die HRC58+2, middle die HRC60+2
